F16 Aven, 16-Inch Performance, F-Series Power

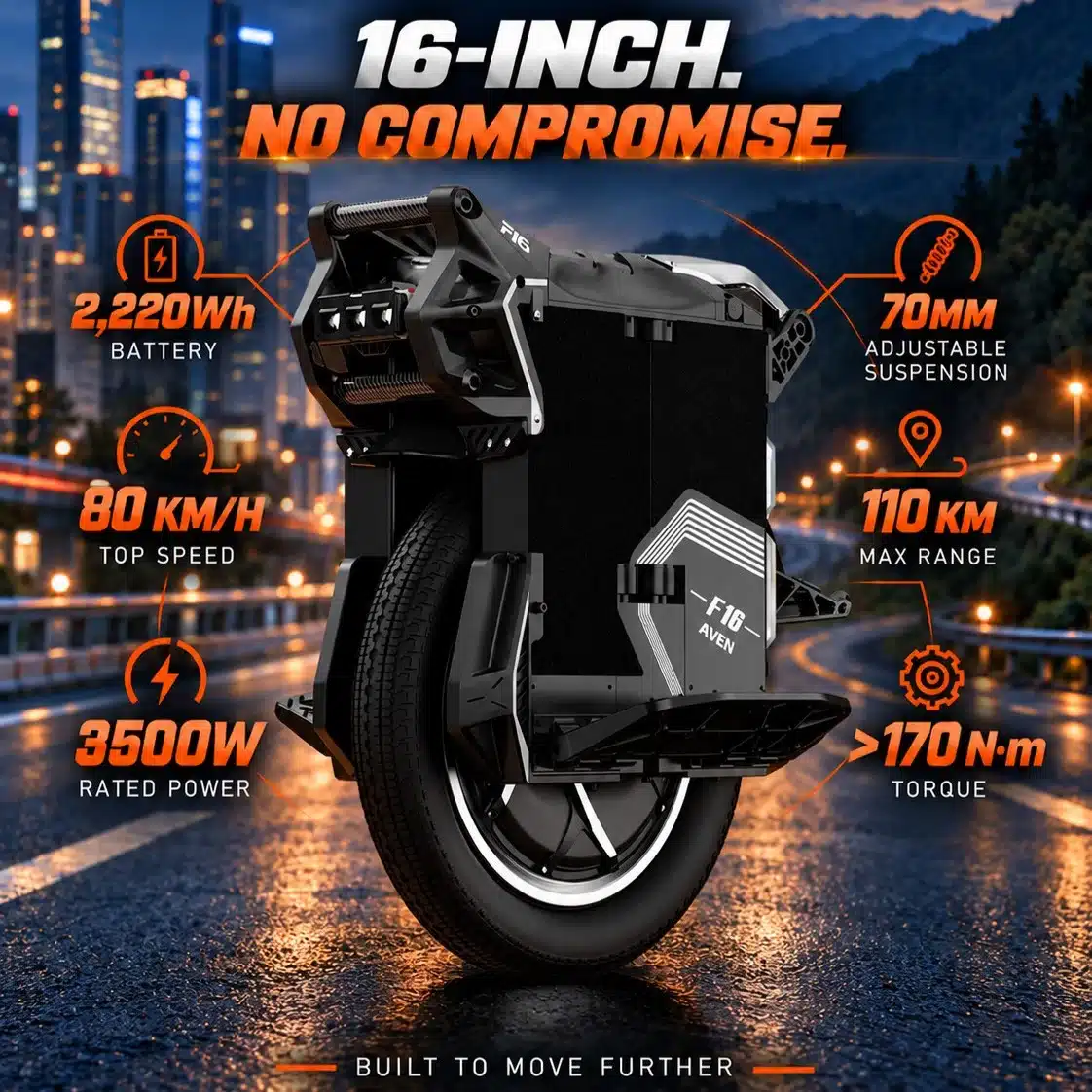

10,000 W peak output, more than 170 Nm of torque, a 2220 Wh battery and tunable four-point suspension—engineered around a responsive 16-inch platform.

Full Performance, Smaller Footprint

A new expression of F-Series performance. The F16 brings a high-output motor, a 2220 Wh battery and adjustable four-point suspension together in a responsive 16-inch platform. From the first turn to the last climb, it feels ready for more.

• Agility: Compact 16-inch geometry responds quickly to rider input, making direction changes and precise line placement feel natural.
• Power: 10000 W peak output and over 170 Nm torque deliver strong acceleration and climbing response.
• Control: A 16×3.0 inch tyre, wide pedals and tunable four-point suspension keep the ride composed across changing terrain.
• Intelligence: Smartphone Bluetooth proximity locking, Smart BMS, and app-connected controls make access, monitoring, and setup easier.

10000 W when it matters

A 3500 W rated motor reaches up to 10000 W peak output and delivers more than 170 Nm of torque. With an approximate top riding speed of 80 km/h, the F16 is built for responsive acceleration, technical climbs and fast open sections.

• Peak Output 10000 Watt.
• Torque over 170 Nm.
• Top Riding Speed 80 km/h.

Make Every Surface Yours

With 70 mm of frame travel and a four-point suspension system, the F16 brings a more composed feel to changing terrain. Three adjustments make the ride your own.

• Rebound control: Tune how quickly the suspension recovers after a hit.
• Compression damping: Adjust damping for the support you want through each impact.
• Spring preload: Set initial spring force to suit your weight and riding style.

Agile By Size, Planted By Design.

The 16-inch platform is quick to place. A 3.0 inch wide tyre adds contact area for cornering, mixed surfaces and rough pavement, balancing response with a more settled feel.

Energy For The Long Way

A 2220 Wh battery gives you more room to explore. With an approximate stated range of 110 km, the F16 is built for the rides you do not want to end.

Ready When You Approach

Choose how your phone controls F16’s proximity lock and unlock—from automatic Bluetooth connection to preset ranges or a distance you set yourself.

• Connected, unlocked, ready: When your phone’s Bluetooth connection disconnects, F16 powers off and locks. When Bluetooth reconnects automatically, F16 powers on and unlocks.
• Approx. 2–3 m: A close-range proximity setting for your approach to F16. Actual activation distance varies by phone.
• Approx. 3–5 m: A wider preset proximity range. Actual activation distance varies by phone.
• Approx. 5–8 m: The longest preset proximity range. Actual activation distance varies by phone.
• Set your own distance: Take your phone to the distance you want from F16, then tap Confirm in the proximity settings to save that distance.

Find Your Own Way Through

The city opens into a trail. The trail turns into something new. The F16 brings responsive control to the changing surfaces and unexpected lines that make a ride your own. Urban transitions, technical climbing, changing surfaces.

A Closer Connection On And Off The Wheel

Find your F16. Keep it up to date. Make it yours. Connected features bring a more considered ownership experience to every day.

• Your wheel within reach: Apple Find My and Google Find Hub help you locate your F16 from a compatible device. A familiar way to check where you left it.

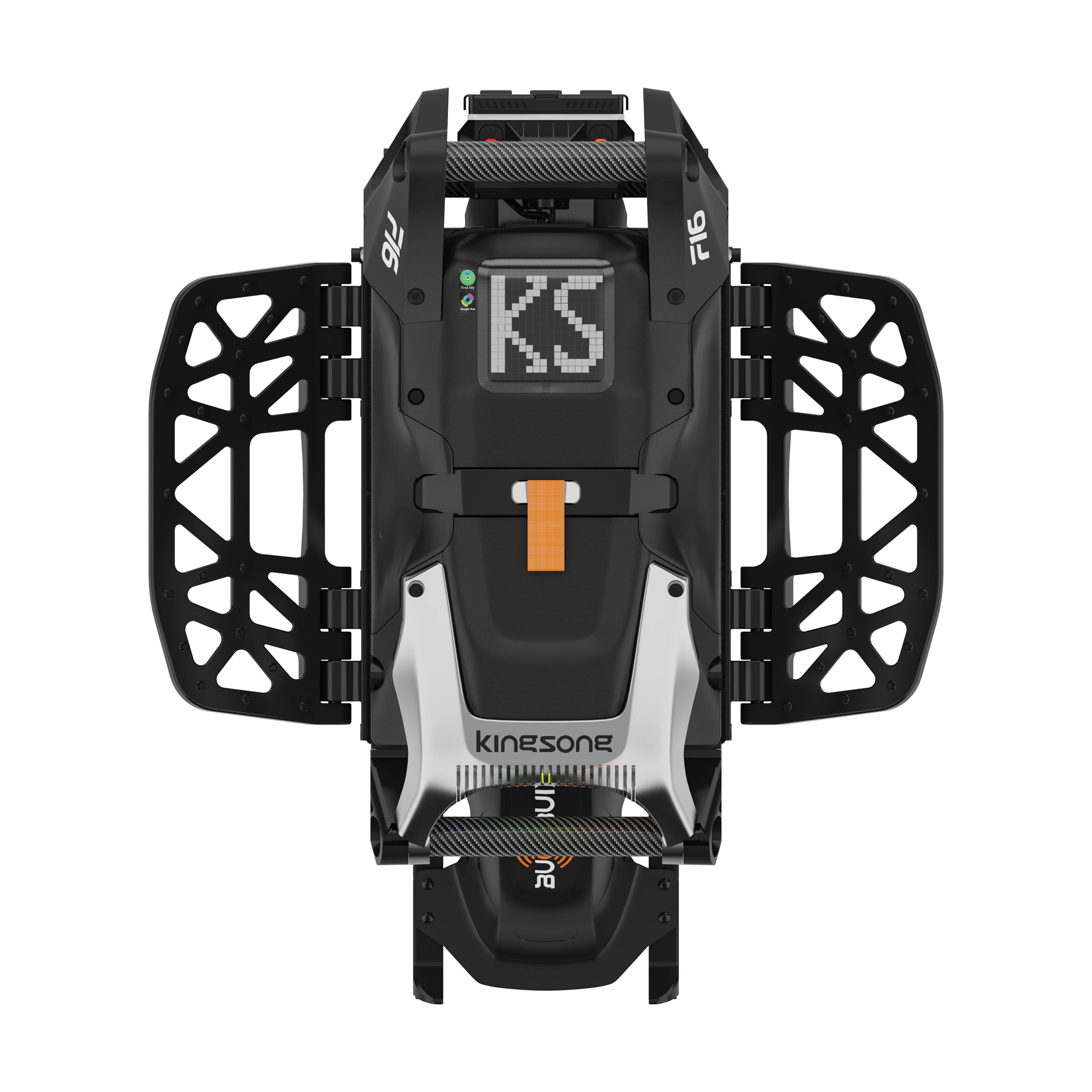

• Your display your choice: The 16 × 16 dot-matrix display lets you choose which ride information to show—battery level, voltage or speed—one at a time.
• Better with every update: OTA updates bring ongoing refinements to the mainboard, display and BMS, helping the F16 stay current, responsive and ready for the road ahead.

Light The Way, Signal Every Move

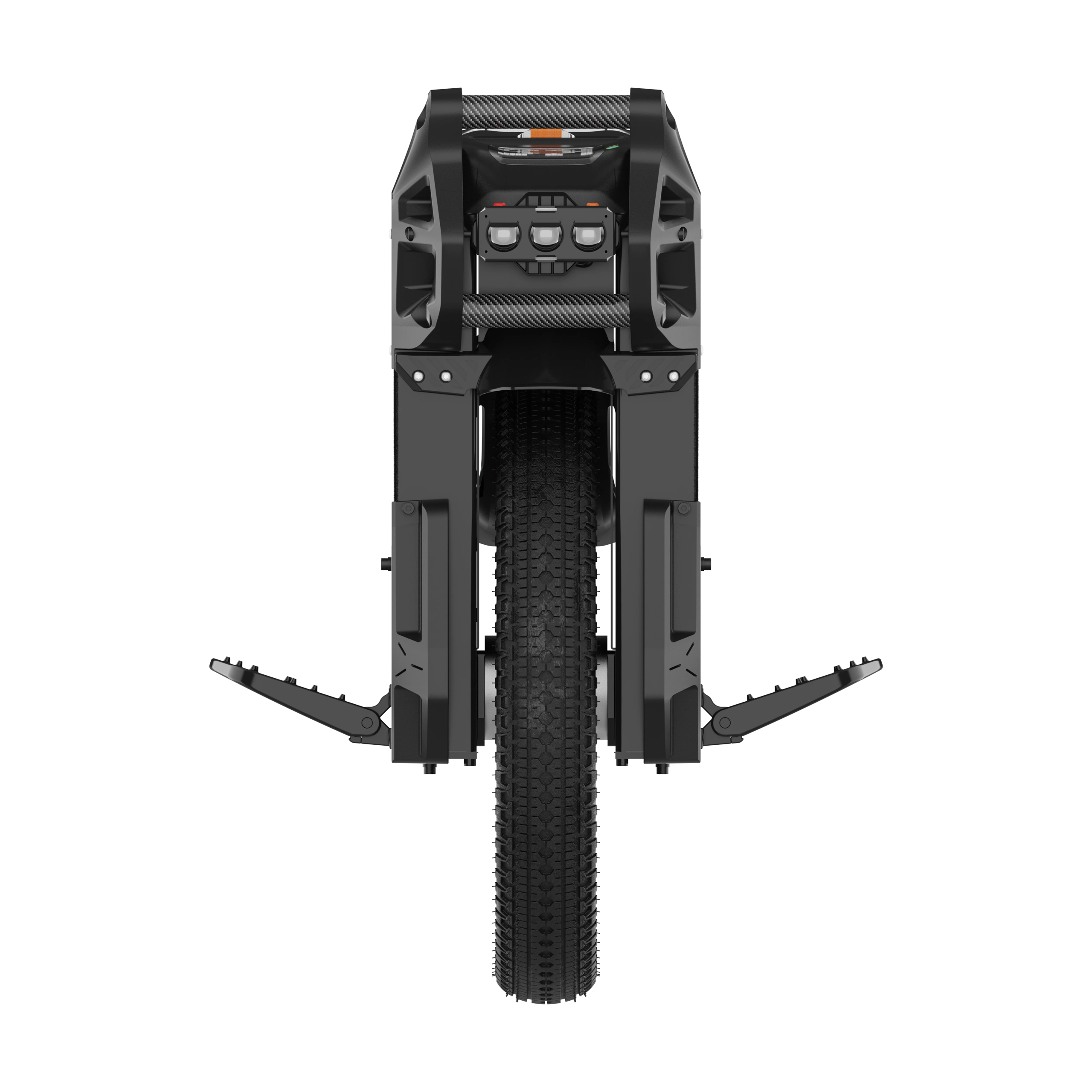

A 30 Watt dual-color headlight lights the road ahead, while the rear lighting system communicates braking, turning and ambient lighting states to riders and traffic behind you.

Every Detail Considered

From charging and weather protection to carrying, parking and foot placement, thoughtful details make the F16 easier to live with between every ride.

• Adjustable tilt protection: Set the side-tilt protection angle from approximately 40° to 70° in the KingSong App. Motor output cuts when the configured angle is exceeded and restores once the wheel returns upright.
• Lift protection: Choose your preferred lift-up protection mode in the KingSong App. F16 can stop motor balancing when the unit is lifted, when the trolley handle is raised, or after a double-press of the power button.
• Dual charging: Two GX16-6 charging ports support up to 5 Amp each, with a maximum combined charging current of 10 Amp using compatible chargers.
• Wide 277 × 130 mm pedals: A generous pedal platform gives your feet more room for placement, leverage and control during longer or more technical rides.
• Carbon fibre carry handles: Front and rear carbon fibre handles provide secure lifting points with a lightweight, tactile finish built into the F16 chassis.
• Protection for everyday conditions: IP54 vehicle protection, IPX6 battery water resistance and dedicated mainboard waterproofing help protect critical systems from everyday dust, splashes and changing conditions.
• Progressive speed unlock: For the first 5 km, F16 uses limited factory speed settings to support a more controlled first-ride experience. Full-speed mode unlocks automatically after the first 5 km of riding.
• Built-In kickstand: An integrated kickstand gives the F16 a stable place to rest between rides without leaning it against a wall.

The Compact Performance Step In The Suspension Range

From accessible 16-inch suspension to larger trail-focused performance, the F16 brings serious power and tuning into a compact, responsive platform.
