Description

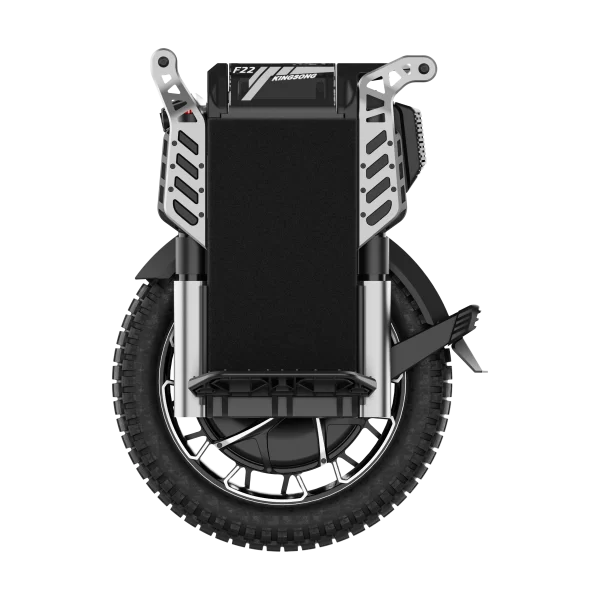

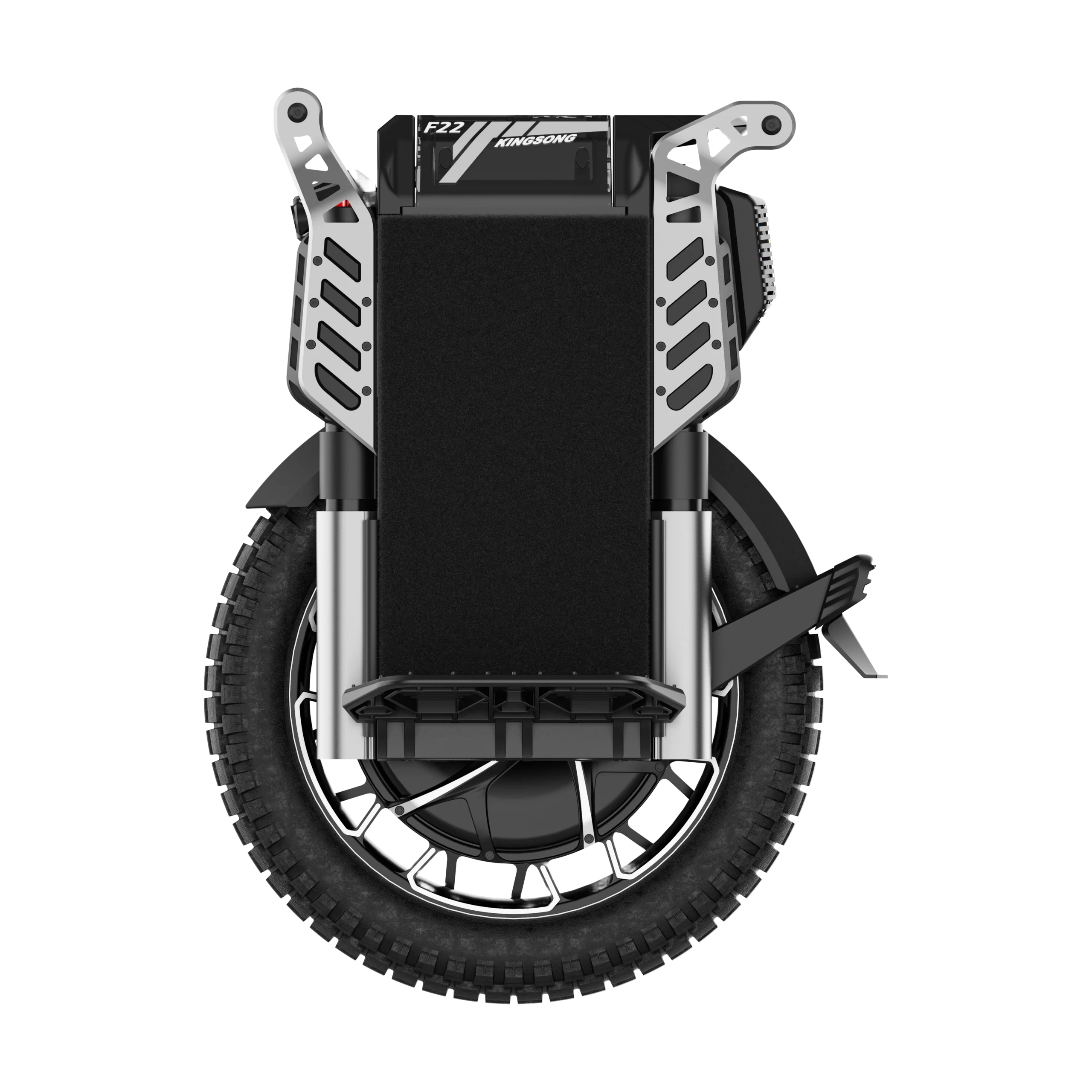

The KingSong F22 Pro electric unicycle is a cutting-edge personal mobility device designed for thrill-seekers and urban commuters. Whether you want to conquer steep hills or cruise through city streets, the KS-F22 delivers unparalleled performance and customization options.
It features the first industry-leading four point suspension system available in the EUC market, a stunning 5500 Watt rated hollow core motor capable of 12000 Watt peak output power, 168 Samsung 50S battery cells in 42S4P configuration to provide 155.4 Volt rated and 176.4 Volt maximum performance, and IPX6 waterproofing.
The F22 Pro is available to be configured with either dual rear audio or dual rear lights, and the default fitted knobby tyre can be swapped out for either an off-road or a street tyre.

Preorders Now Available

Atomic EV is now taking preorders for the F22 Pro second production run (and other KingSong EUCs) with delivery anticipated in March 2025.

The initial reviews of the F22 Pro by Alien Rides, E-Riderz, and Wrong Way have been very positive, and point to this EUC setting a new standard for high end EUCs.

Suspension System

The F22 Pro suspension by DNM can absorb any bumps to provide an unbelievable riding comfort. The four point system not only improves the overall riding feel but also improves stability and safety. A whole new level for both off-road and urban riding in extreme conditions.

• Damping adjustment
• Preload adjustment
• Air pressure regulation
• 90 mm suspension travel

Smart Battery Management System

Powerful battery protection keeps you safe while riding.

• Short circuit protection
• Overcurrent protection
• Overcharge protection
• Over discharge protection
• Temperature protection
• Under voltage protection

Hollow shaft motor

Redesign of the traditional motor’s core structure, allowing for efficient power conversion that shatters distance boundaries. The perfect choice for long-distance riding experience.

SKF Bearings

The bearing seals are made from high-quality materials providing excellent sealing performance, and are dustproof, waterproof, high temperature resistant, and oil resistant.

Precise CAD/CAM technology and advanced manufacturing processes are used to ensure that the bearings have excellent matching, precision and reliability.

Using high-quality steel, after heat treatment, quenching, tempering, passivation and other processes, the bearings have excellent wear resistance and corrosion resistance.

36 TOLL Packaged MOSFETs

The larger size of the metal sheet on the back provide better heat dissipation performance; at the same time, it improves energy efficiency and power density, improves electromagnetic interference protection, and simplifies PCB design.

Audio/Light Option

The F22 Pro has two configuration versions to choose between:

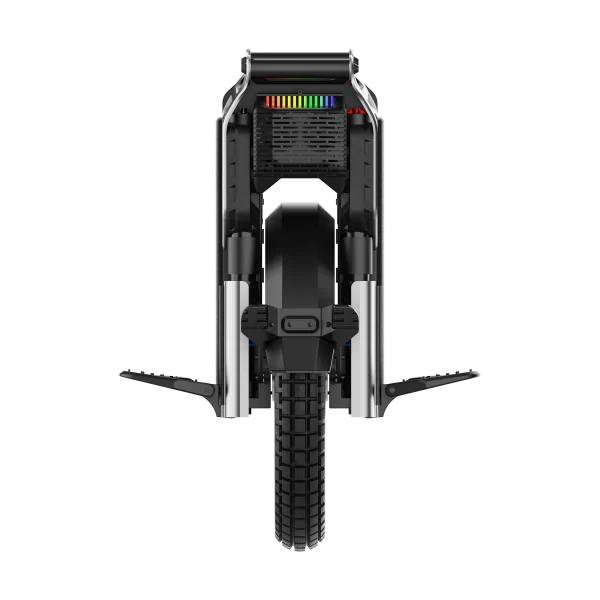

• Dual Rear Audio version, which comes with independent stereo sound design configured with dual 20W woofers + 15W tweeters. Music can be played via Bluetooth 5.0 through the mobile phone connected to the vehicle, or via a USB flash drive inserted in the USB-A slot.
• Dual Rear Light version, which has two circular RGB lights at the rear of the F22 Pro and integrated with the body. Various lighting effects are possible through braking and steering.

Multiple Tyre Options

By default the F22 Pro comes with a 2.75-14 (20 inch) knobby tyre. There are also 2.75-14 off-road or 2.75-14 street tyre options available.
Please contact us when ordering if you’d like your F22 Pro to be delivered with an off-road or street tyre fitted instead of the knobby tyre at no additional cost.
